2026 Toyota Tacoma Front and Rear Dash Camera With SSD

The setup here is a clean front and rear dash camera install in a 2026 Toyota Tacoma using the VIOFO A329S with an SSD for storage. This particular truck is running the front and rear configuration, and it is a good example of how to keep everything tidy while working around the factory equipment Toyota is putting in these newer vehicles.

If you are planning a Toyota Tacoma dash camera install, especially on a newer model, there are a couple of important details that matter a lot. Camera placement is one of them. Storage setup is another. On this Tacoma, both were handled in a way that keeps the system functional, hidden, and easy to live with day to day.

The Dash Cam Setup

The truck is equipped with a VIOFO A329S front and rear dash cam system. The front unit is the 2-channel version, which means it is recording both the forward view and the rear view through a dedicated rear camera.

At the front camera, three connections are in use:

• Power cable
• Rear camera cable
• SSD connection

The side port for the interior camera or telephoto camera is not being used in this installation. That keeps the system focused on what the customer wanted: a straightforward front and rear recording setup with expanded storage.

Using an SSD With the VIOFO A329S

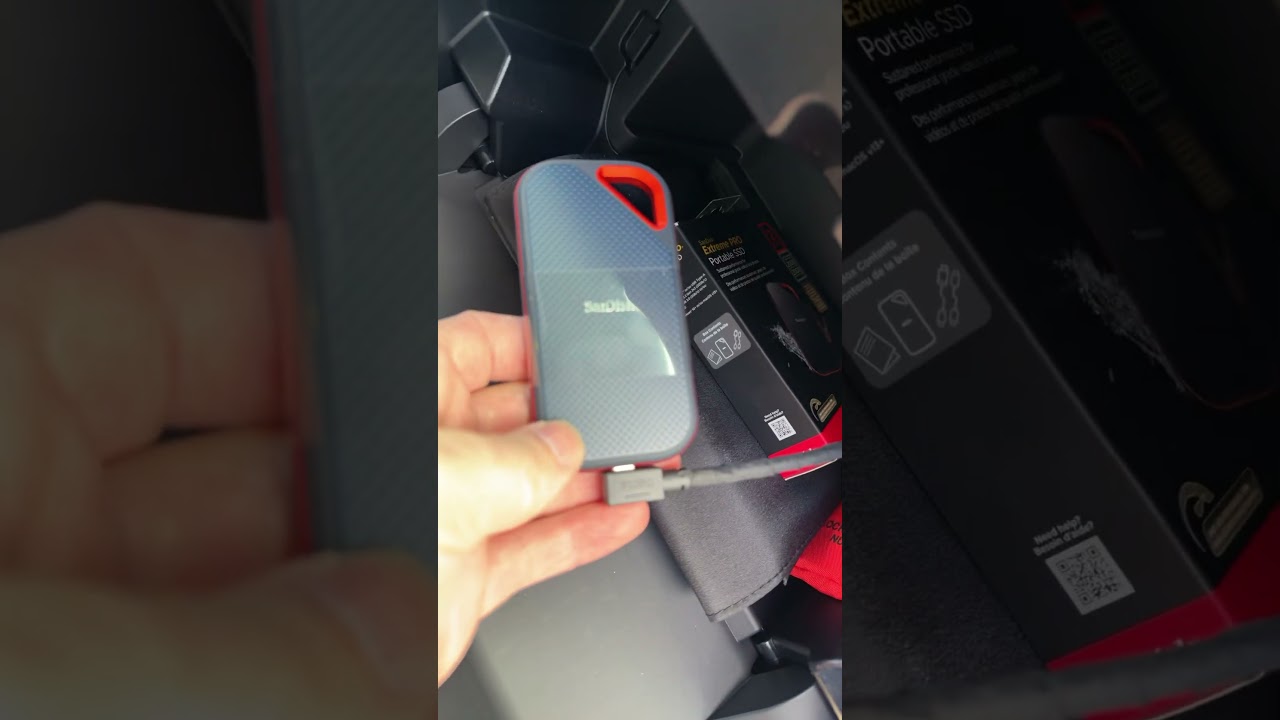

One of the standout parts of this install is the use of an external SSD instead of relying only on a memory card. The SSD is connected directly to the VIOFO A329S, and in this Tacoma, it was routed neatly into the glove box.

To make that happen, a small hole was made in the back of the glove box tray. That allowed the SSD cable to pass through cleanly so the drive could stay tucked away out of sight. It is a simple solution, but it makes a big difference in keeping the cabin looking factory and uncluttered.

The customer is using one of the recommended SanDisk Extreme Pro portable SSDs. That is the drive chosen for this setup, and it pairs with the A329S for a compact and organized storage arrangement.

Why the glove box location works well

• Hidden installation so the SSD is not left exposed in the cabin
• Cleaner cable management with the wiring routed through the back of the tray
• Easy access when needed without having the drive mounted in an awkward spot

For anyone considering a dash cam with SSD storage, this is a practical way to do it in a truck like the Tacoma.

Rear Camera Placement

The rear camera is mounted on the rear window, and the wiring has been tucked away so it stays hidden throughout the vehicle. That is exactly what you want in a professional install. You get the coverage of a rear camera without loose wiring, dangling cables, or anything that distracts from the interior.

In a pickup like the Tacoma, rear camera placement matters because the cabin and rear glass layout are a little different from a typical sedan. Mounting on the rear window keeps the camera in a proper position for recording what is happening behind the truck while maintaining a clean appearance inside.

An Important Warning for 2026 Toyota Tacoma Dash Cam Mounting

One of the biggest things to watch out for on the newer Toyotas is the factory intrusion sensor. Toyota is now mounting this sensor in a location that can create problems if a dash camera is installed too close to it.

On this 2026 Tacoma, you cannot mount a dash camera near that intrusion sensor. If you do, it can interfere with the sensor’s operation.

There is an even bigger issue beyond simple interference. If someone insists on mounting the dash cam in that area, the intrusion sensor would need to be permanently turned off. At that point, the sensor is essentially useless.

That means proper placement is not just about getting a good recording angle. It is also about preserving the factory safety and security features of the vehicle.

Key takeaway for newer Toyota installs

• Check for the factory intrusion sensor before choosing a dash cam location
• Do not mount the camera near that sensor
• Avoid any placement that would require disabling factory equipment

This is one of those details that can easily be missed if someone is treating a 2026 Tacoma like an older vehicle. The mounting area around the windshield is no longer something you can assume is open and safe to use.

What Makes This Install Work

This Tacoma setup works because it keeps the priorities straight:

• Front and rear coverage with the VIOFO A329S 2-channel system
• SSD storage routed cleanly into the glove box
• Rear camera wiring hidden throughout the vehicle
• Proper front camera placement to avoid interference with the Toyota intrusion sensor

Nothing here is flashy for the sake of being flashy. It is just a smart, clean installation that respects both the dash cam system and the vehicle it is going into.

Final Thoughts

If you are outfitting a 2026 Toyota Tacoma with a front and rear dash camera, the VIOFO A329S with SSD storage is a solid combination when installed properly. The big things to pay attention to are cable routing, storage placement, rear camera mounting, and especially avoiding the intrusion sensor area up front.

On this Tacoma, the result is a tidy install with hidden wiring, a neatly stored SanDisk Extreme Pro portable SSD in the glove box, and full front and rear recording coverage without compromising the truck’s factory sensor system.

That is the goal with a setup like this: clean, functional, and done right the first time.
