Subaru Trailseeker Dash Camera and Battery Pack Installation

A clean dash camera installation is about much more than mounting a camera to the windshield. The wiring needs to be concealed, the vehicle’s safety systems need to be respected, and every component needs to sit securely without affecting normal operation.

For this Subaru Trailseeker, the setup includes a VIOFO A329S front and rear dash camera system plus a Powerpack Max 8 battery pack. The result is a discreet installation with front and rear coverage, hidden power wiring, and battery-backed operation.

Key Takeaways

  • The VIOFO A329S provides discreet front and rear camera coverage for the Subaru Trailseeker.
  • A-pillar wiring is secured alongside factory wiring without interfering with the airbag deployment path.
  • The Powerpack Max 8 charges while driving and is hidden safely beneath the seat.
  • Rear camera wiring runs through factory grommets and concealed interior routing from back to front.

Table of Contents

Airbag-Safe Wiring at the A-Pillar

The A-pillar is one of the most important areas to handle correctly during a dash camera installation. This section of trim houses the curtain airbag, so wiring cannot simply be tucked anywhere it fits.

Here, the dash camera wiring is routed alongside the factory wiring behind the A-pillar airbag and secured to the existing harness. This keeps the added cable organized and, more importantly, prevents it from interfering with airbag deployment.

Airbag safety has to come first. Any accessory wiring in this area must be routed so it cannot obstruct, restrict, or become entangled with the airbag system.

Concealed Front Camera Power Wiring

From the A-pillar, the power cable is hidden behind the interior panels and brought forward to the area behind the rearview mirror. Keeping the cable behind the headliner and trim gives the installation a factory-style finish rather than leaving a visible wire draped across the windshield.

The power connector exits neatly near the mirror, exactly where it is needed for the front camera. The camera itself is mounted high on the windshield, keeping it out of the driver’s primary field of vision while maintaining a clear forward-facing perspective.

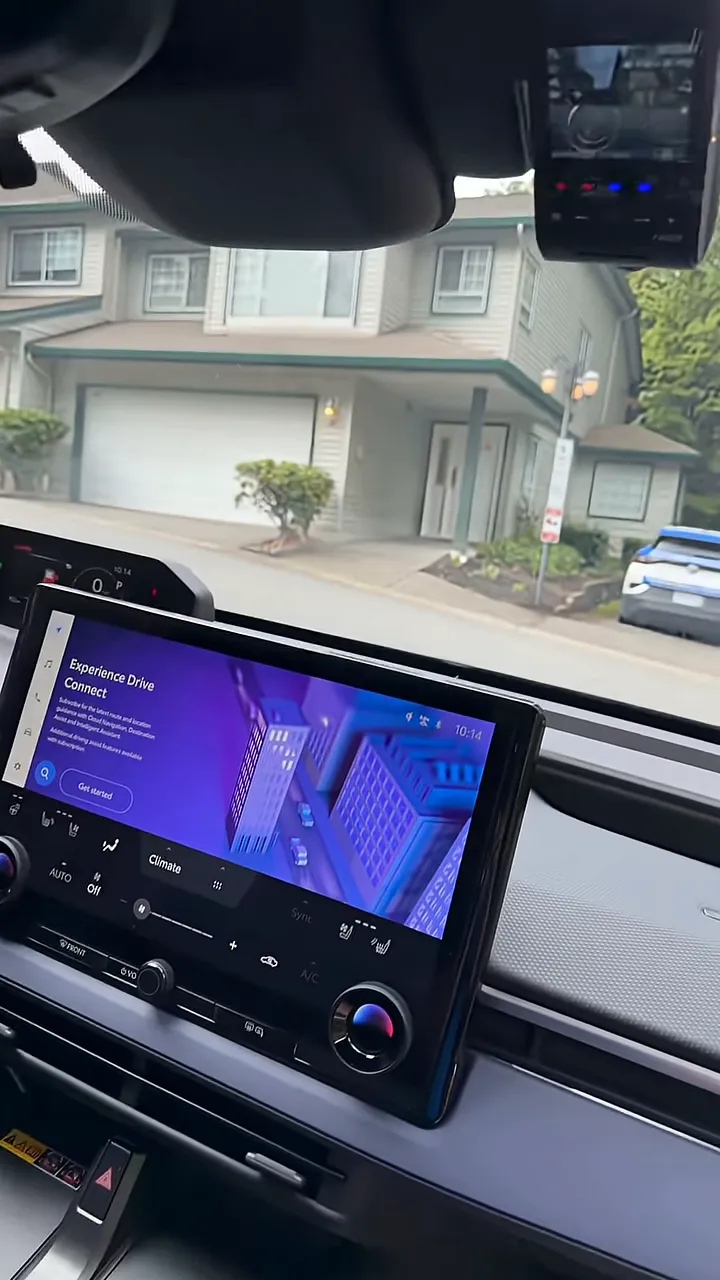

Front dash camera mounted high on the windshield below the headliner
The front camera sits high behind the rearview mirror area, with its wiring tucked out of sight.

Battery-Backed Dash Camera Power Under the Seat

This Trailseeker also receives a Powerpack Max 8 battery pack. The pack charges while the vehicle is being driven, providing a dedicated power source for the dash camera system.

The battery pack and its wiring are installed safely beneath the seat. Everything is tucked away from the seat rails and the safety-related components below the seat, so normal seat movement and vehicle functions are not affected.

This placement keeps the equipment protected and out of the cabin while preserving a clean interior. It also avoids turning the centre console, glovebox, or cargo area into a storage spot for loose electronics and exposed wiring.

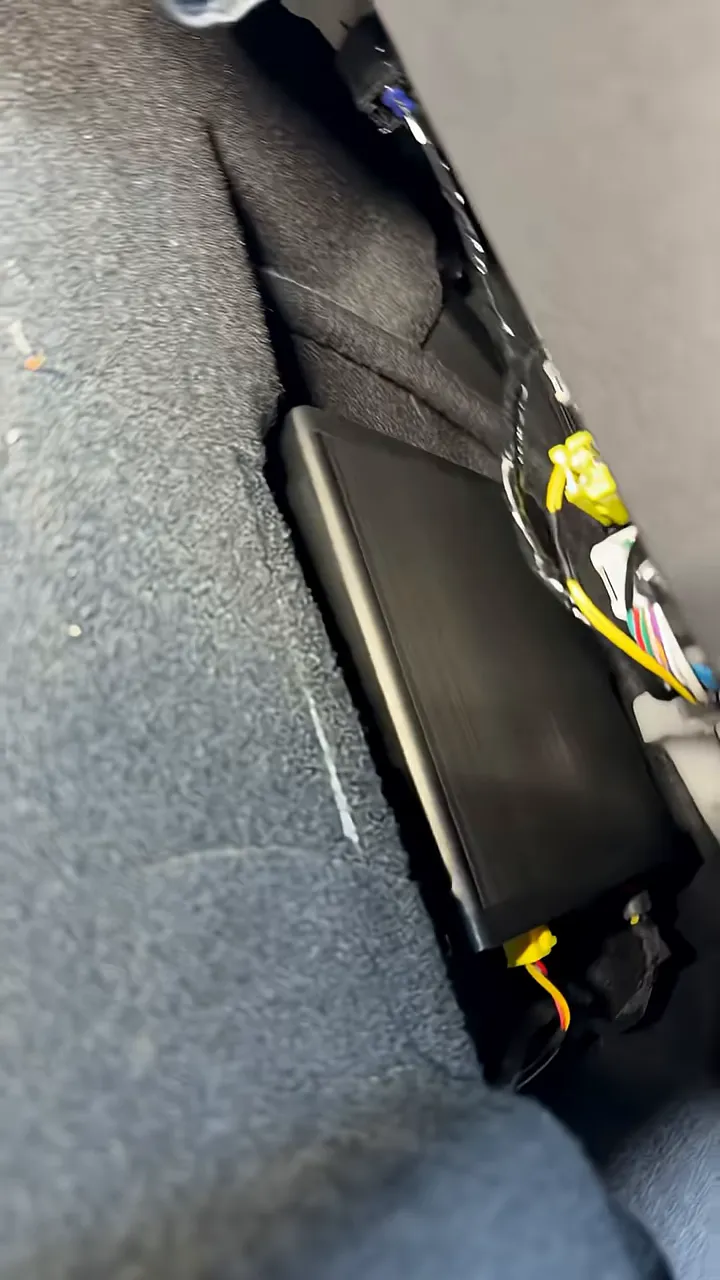

Black battery pack and bundled wiring positioned beneath a vehicle seat
The Powerpack Max 8 is concealed beneath the seat without interfering with the seat rails or nearby safety components.

Rear Camera Wiring Through Factory Grommets

The rear camera is mounted at the back of the vehicle, with its cable routed internally from the rear hatch area all the way to the front camera system.

Rather than running a wire where it can be seen or damaged, the installation follows the vehicle’s existing routing paths. The cable passes through factory grommets and is hidden behind the interior trim. This protects the wire, preserves the vehicle’s appearance, and allows the hatch to operate normally.

Routing through factory grommets matters because these protected pass-through points are designed to carry wiring between moving body panels. It is the difference between a finished installation and a cable exposed to pinching, movement, and weather.

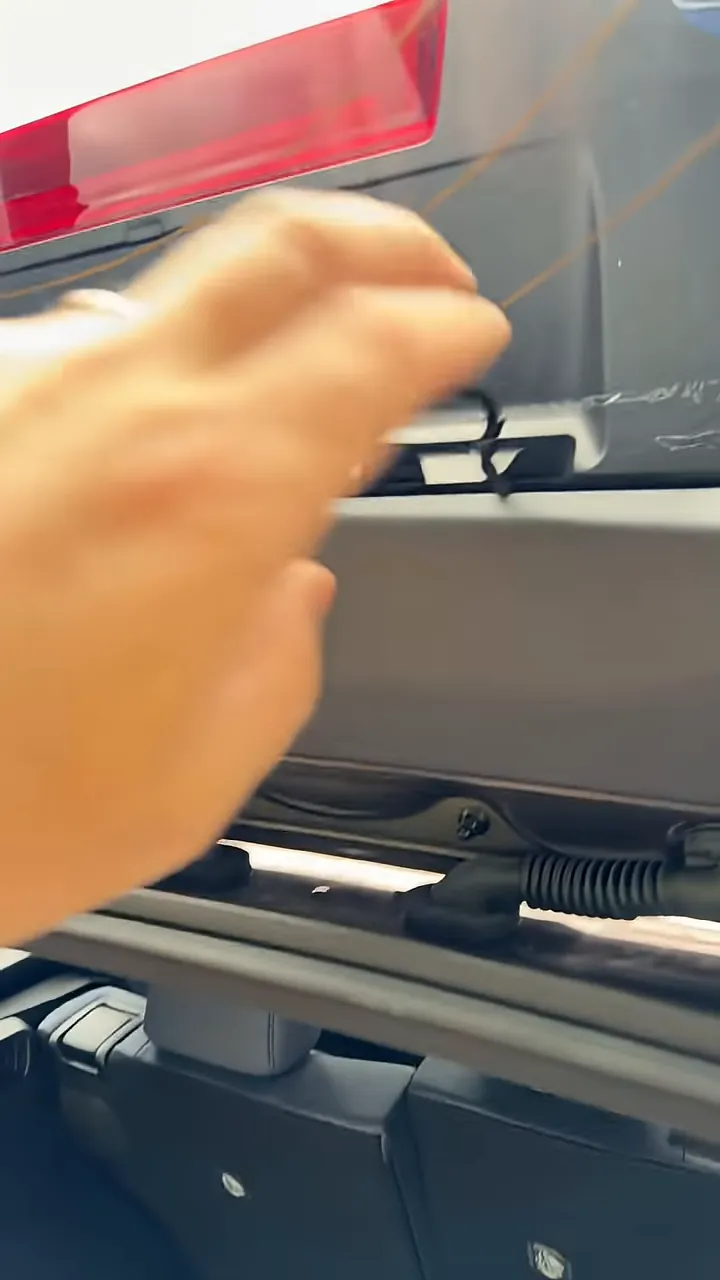

Rear dash camera mounted near the Subaru Trailseeker liftgate handle
The rear camera is positioned at the liftgate and connected through concealed factory-style cable routing.

A Complete VIOFO A329S Dash Camera Installation

The finished Subaru Trailseeker setup brings together all the pieces that matter in a properly integrated dash camera system:

  • VIOFO A329S front camera mounted high and discreetly near the rearview mirror.
  • Rear camera installed at the back of the vehicle for coverage behind the Trailseeker.
  • Hidden wiring routed behind panels from front to rear.
  • Airbag-conscious A-pillar routing that keeps accessory wiring clear of deployment areas.
  • Powerpack Max 8 battery pack concealed under the seat and kept clear of seat rails and safety systems.
  • Factory grommet routing for protected rear-hatch wiring.

When the installation is complete, the important parts are there when needed, but the cables, battery pack, and routing work stay out of sight. That is the goal: dependable front and rear recording, clean power delivery, and an installation that respects the vehicle’s safety systems from start to finish.

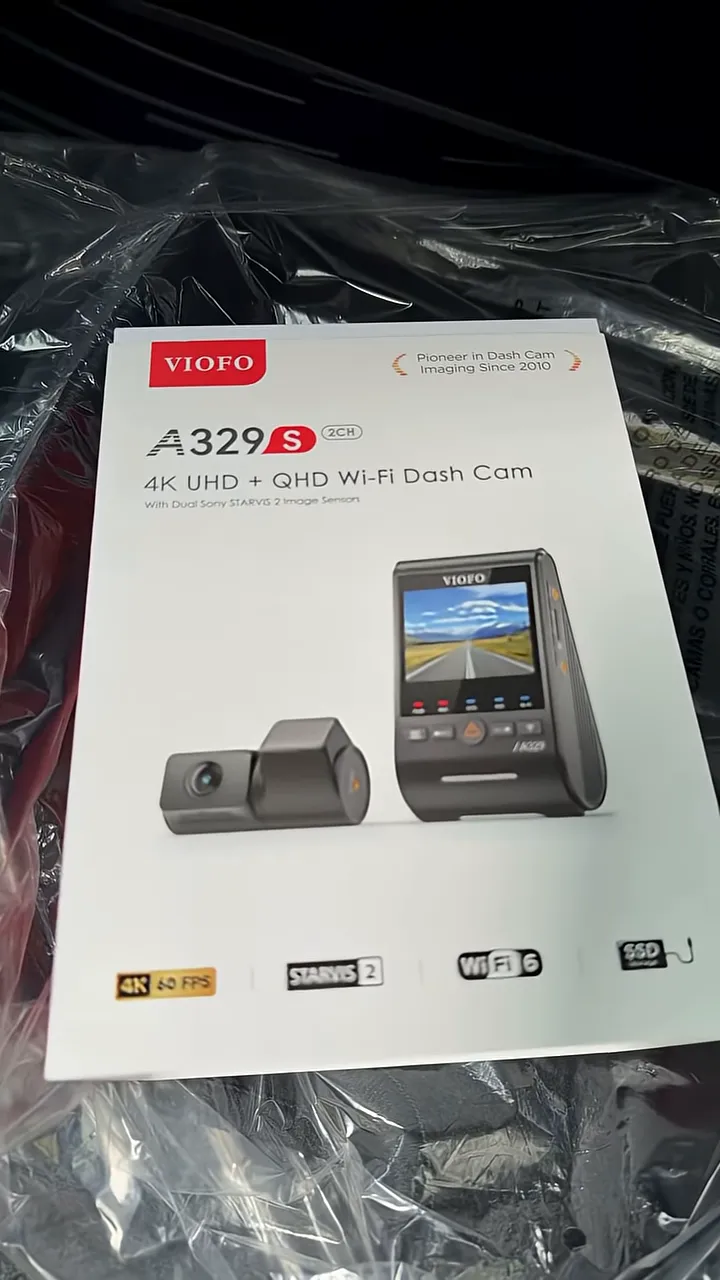

VIOFO A329S dash camera product box showing front and rear cameras
