2025 Ford Explorer Dash Cameras Battery Pack Installation Guide
Welcome to an in-depth look at installing a dash camera battery pack in the 2025 Ford Explorer. At Safe Drive Solutions - Dash Cam Specialists, we pride ourselves on providing expert dash cam installation services that ensure your vehicle is protected with the latest technology. In this article, I’ll walk you through how we installed the Power Pack Max 8 battery pack underneath the passenger seat of this new Ford Explorer, along with the wiring setup and considerations for a clean, professional dash cam installation.
Compact Battery Pack Installation Under the Passenger Seat
The 2025 Ford Explorer offers a great space underneath the passenger seat, which we utilized for installing the Power Pack Max 8 battery pack. This battery pack is impressively small, making it an ideal choice for hidden installations without interfering with seat movement or passenger comfort.
We motorized the seat forward during installation to ensure none of the wiring harnesses touched the battery pack. Even with the seat fully lowered, there was no interference at all, demonstrating the compactness of the Power Pack Max 8 and the smart positioning we chose for it.
Wiring the Battery Pack to the Vehicle’s Fuse Box

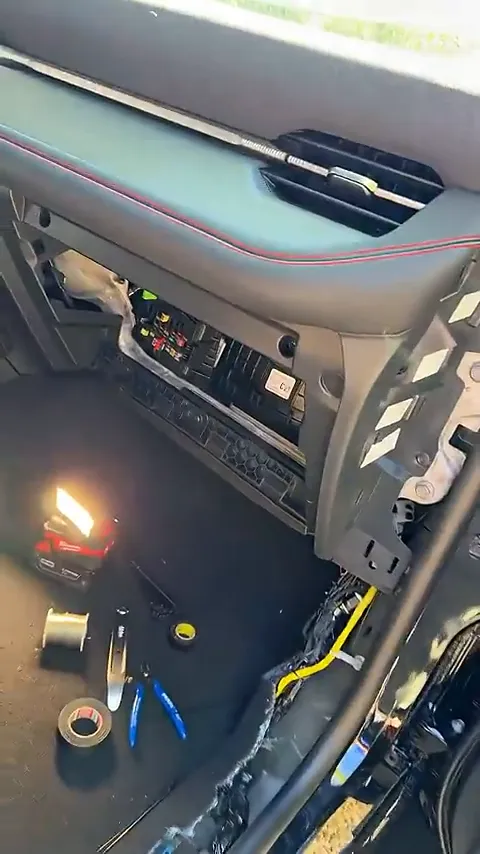

For a reliable and safe power source, we connected the battery pack directly to the vehicle’s fuse box. The fuse box in the 2025 Ford Explorer is located right behind the glove box, which we temporarily removed for easier access.

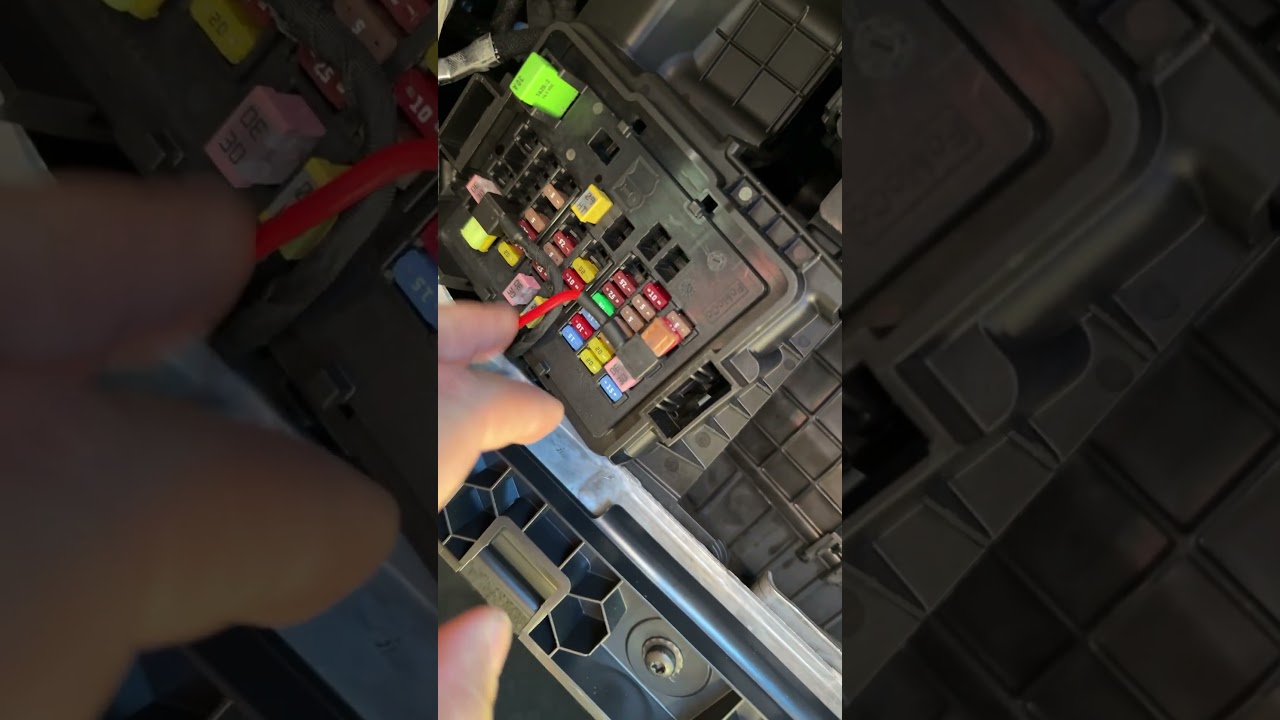

Two spare 20 amp fuses labeled F62 and F64 in this model were perfect for hooking up the constant power supply for the battery pack. We confirmed these fuses were unused and rated for 20 amps, ensuring the battery pack’s power draw would not affect the vehicle’s electrical system.
In addition to the constant power connection, we also tapped into an ignition circuit, which we believed to be fuse F50. This ignition wire acts as a trigger to let the battery pack know when to charge, activating only when the vehicle is running. This setup prevents unnecessary battery drain when the vehicle is off.
Understanding the Fuse Box Layout

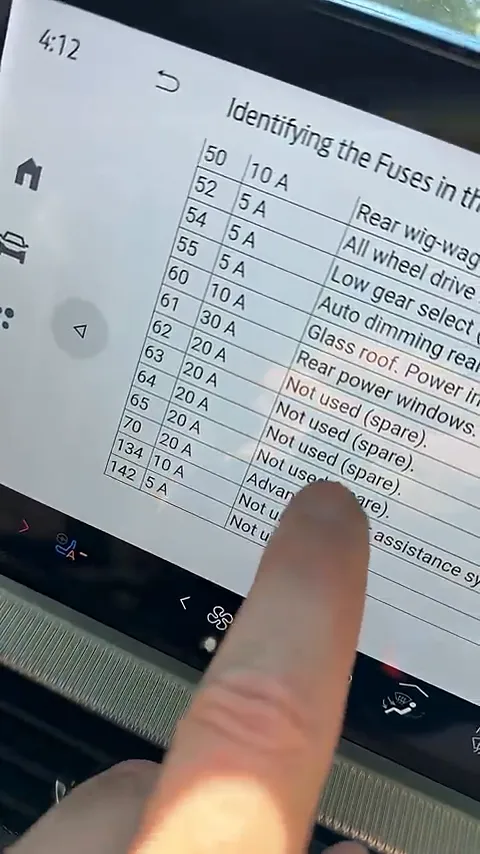

While inspecting the fuse box layout from the radio panel, we noticed the labels for the fuses:
- F62 and F64: Not used, spare fuses rated at 20 amps
- F50: A 10 amp fuse labeled for the rear wig-wag module, which appears to be related to police vehicles
Interestingly, the ignition wire (likely F50) does not draw current; it simply acts as a trigger signal for the battery pack to know when to start charging. Meanwhile, the constant power fuses (F62 and F64) do draw current but are not at risk of being overloaded due to the battery pack's design.
Managing Dash Cam Wiring and Rear Camera Integration

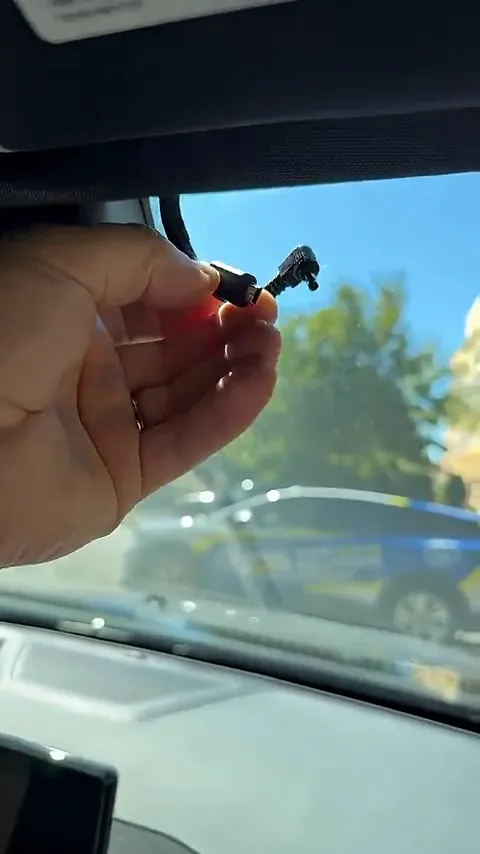

Up near the dashboard area, we concealed the wiring for the Thinkware U3000 dash camera system. This includes the power cable, the rear camera cable, and other necessary wiring components, all neatly hidden to maintain the vehicle’s clean interior look.
The Thinkware U3000 is a top-tier dash cam featuring front and rear cameras, and advanced safety alerts. Installing its wiring discreetly ensures the system performs optimally without clutter or visible cables.
Why Choose a Battery Pack for Your Dash Cam?
Using a dedicated battery pack like the Power Pack Max 8 offers several advantages over relying solely on the vehicle’s battery:
- Extended parking mode: The battery pack powers the dash cam when the vehicle is off, allowing continuous recording and motion detection without draining the car’s main battery.
- Protection for vehicle electronics: By wiring through appropriate fuses and ignition circuits, the battery pack avoids overloading or interfering with factory wiring.
- Neat and hidden installation: The compact size allows it to be installed discreetly under the seat or in other hidden compartments.
If you want to learn more about dash cam battery packs and their benefits, check out our collection of dash cam battery packs and explore options like the iVolt Xtra External Battery for longer run times.
Professional Dash Cam Installation Matters
Installing dash cams and battery packs professionally ensures that your system works flawlessly and integrates safely with your vehicle’s electrical system. At Safe Drive Solutions, we handle everything from wiring to fuse taps, ensuring a clean, reliable setup without compromising vehicle warranty or safety.
For more information on professional installation services, visit our Dash Cam Installation page.
Wrapping Up
In summary, installing a battery pack for dash cameras in the 2025 Ford Explorer is straightforward when you have the right components and expertise. The Power Pack Max 8 fits perfectly under the passenger seat without interfering with seat movement. Wiring into the fuse box behind the glove box using spare 20 amp fuses provides a safe and reliable power source. The ignition circuit trigger ensures the battery pack only charges when the vehicle is running.
This setup, combined with the Thinkware U3000 dash camera system, delivers a robust solution for continuous video protection, including parking mode. If you want to protect yourself on the road with high-quality dash cams and battery packs, consider professional installation to get the best results.
